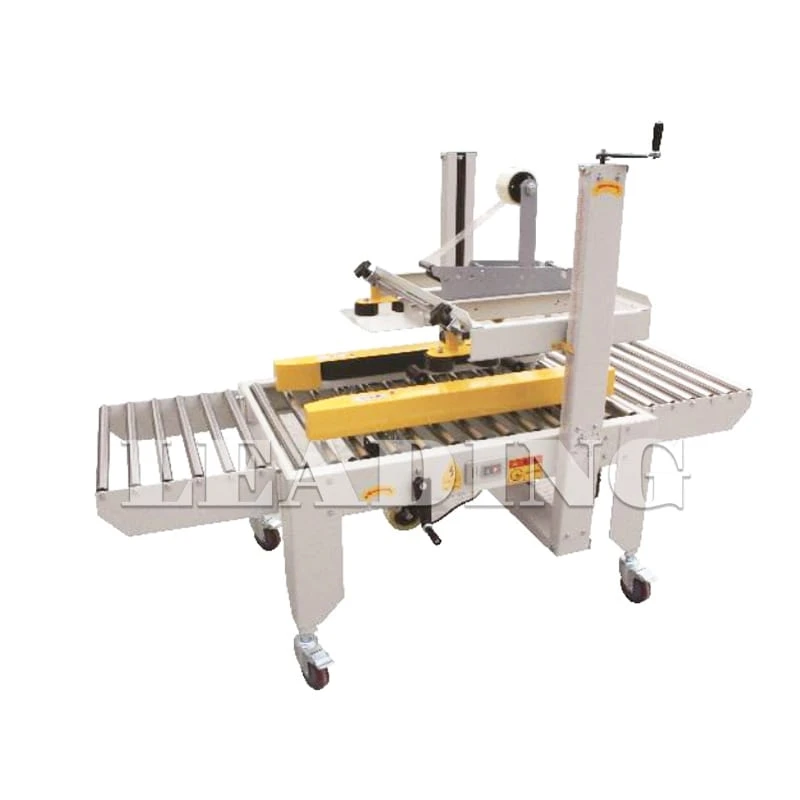

Compact and durable design, easy to operate. Side belts driven suit for sealing narrow carton.

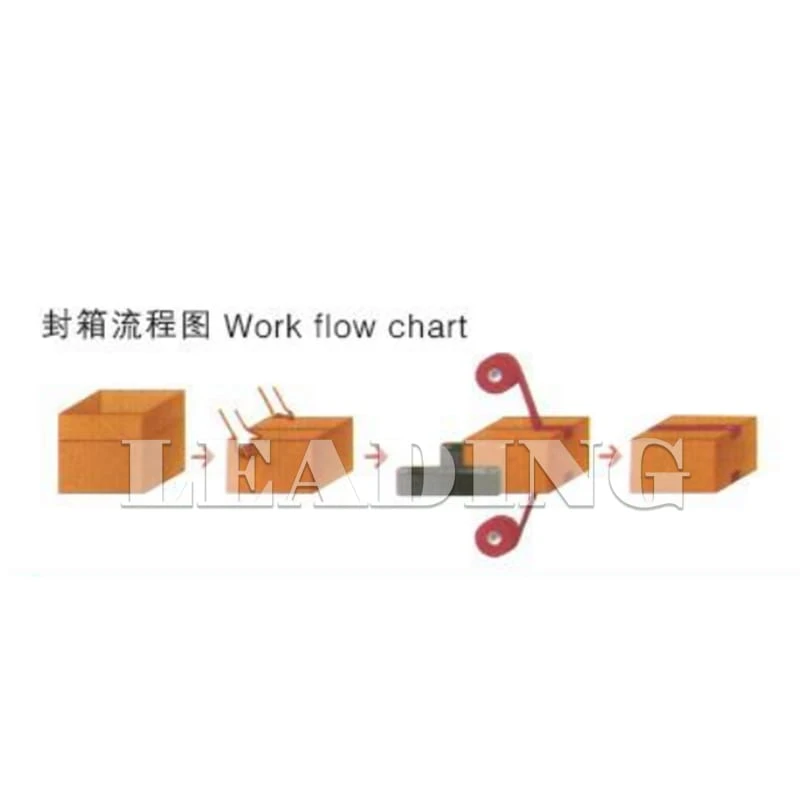

This series is a single machine model, the upper and lower “one” type automatic sealing, suitable for the same time period within the same specification carton.
The transmission design is belt driven on both sides, suitable for lighter cartons.
Applicable carton specifications, different specifications of carton manual adjustment.
Carton size | 150-∞(W)150-500(H)150-500mm |
Table height | 580(min.)~780mm(max.) |
Working speed | 700-1200ctns/hr |
Machine size | (L)850(W)830(H)1200-1600mm |
Power | 110V/220V single phase, 50/60Hz or specified by client |
Tape width | 48mm,60mm,75mm(alternative use) |
Machine net weight | 95kgs |
