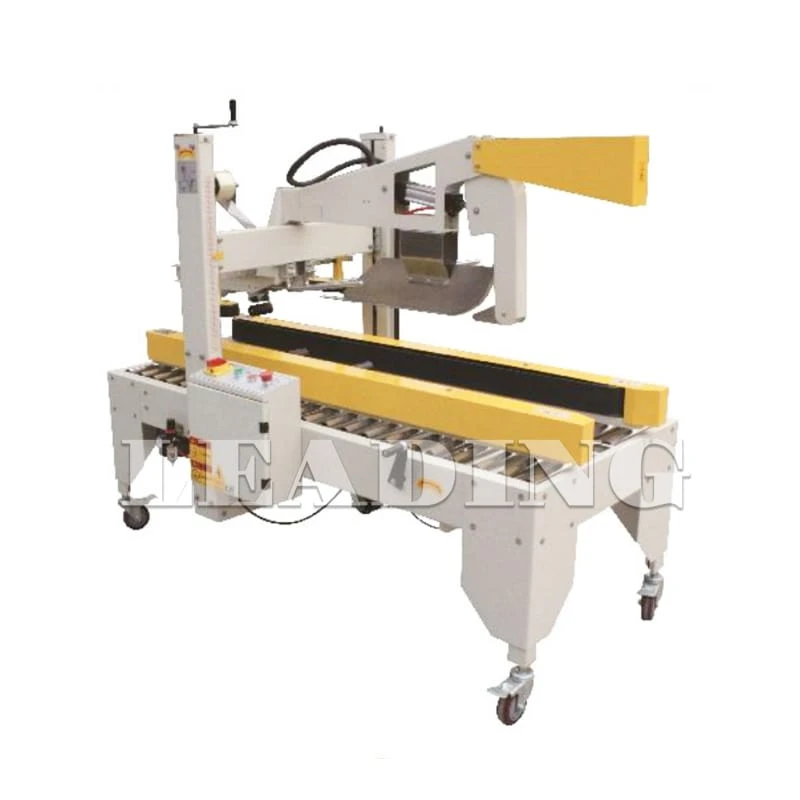

LDC-50 Semi Automatic Flaps Folding And Side Belts Driven Sealer

LDC-50

Application

Compact and durable design, easy to operate. Side belts driven suit for sealing narrow carton.

GET A FREE QUOTE

Main Function

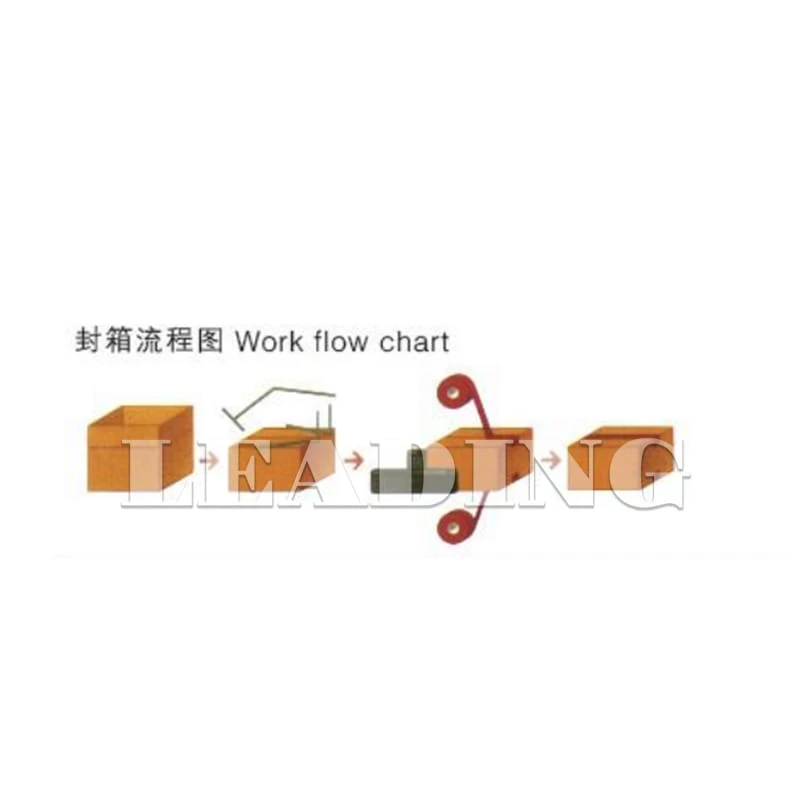

This series is an unmanned model, the carton top cover is automatically folded in, the upper and lower “one” type automatic sealing, suitable for the same time period within the same specification carton.

Transmission design is belt-driven on both sides, suitable for lighter cartons.

Applicable carton specifications, different specifications carton manual adjustment.

Description

Carton size	(L)200-600(W)150-500(H)150-500mm
Table height	580(min.)~780mm(max.)
Working speed	18m/min
Machine size	(L)1690(W)830(H)1180mm
Power	110V/220V single phase, 50/60Hz or specified by client
Tape width	48mm,60mm,75mm(alternative use)
Machine net weight	180kgs
