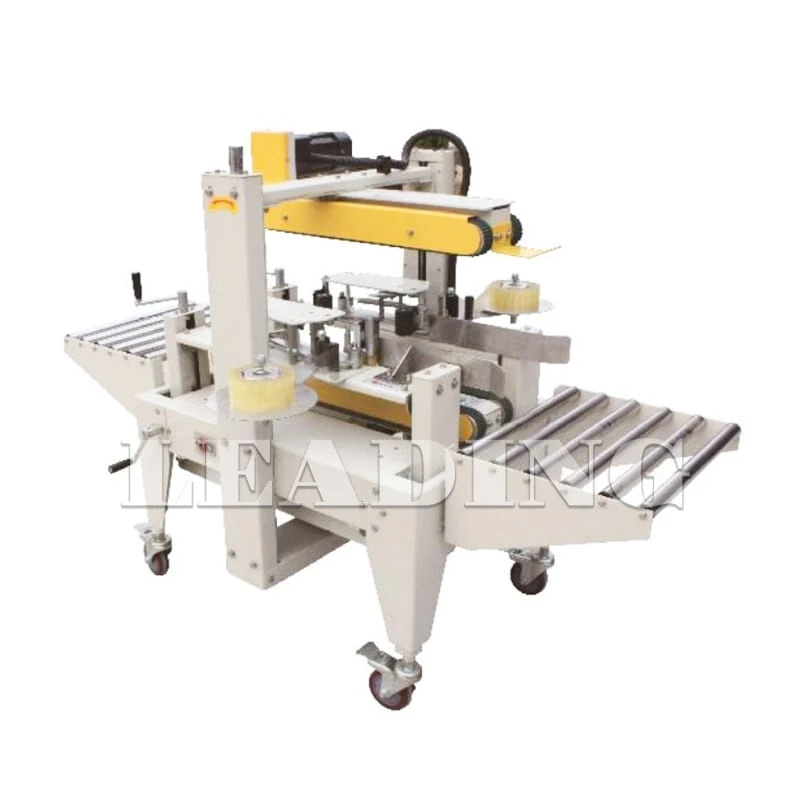

LDS-50 Semi Automatic Top & Bottom Belts Driven And Two Side Sealer Machine

LDS-50

Application

Compact and durable design, easy to operate. Standard specification item.

GET A FREE QUOTE

Main Function

This series is a single machine model, left and right “a” type automatic sealing, suitable for the same time period within the same specification carton.

Transmission design mode for the upper and lower belt drive.

Applicable carton specifications, different specifications carton manual adjustment.

Description

Carton size	(L)200-∞(W)250-400(H)100-250mm
Table height	650(min.)~850mm(max.)
Working speed	1200-2400ctns/hr
Power	110V/220V single phase, 50/60Hz or specified by client
Tape width	48mm-75mm(alternative use)
Machine net weight	130kgs
