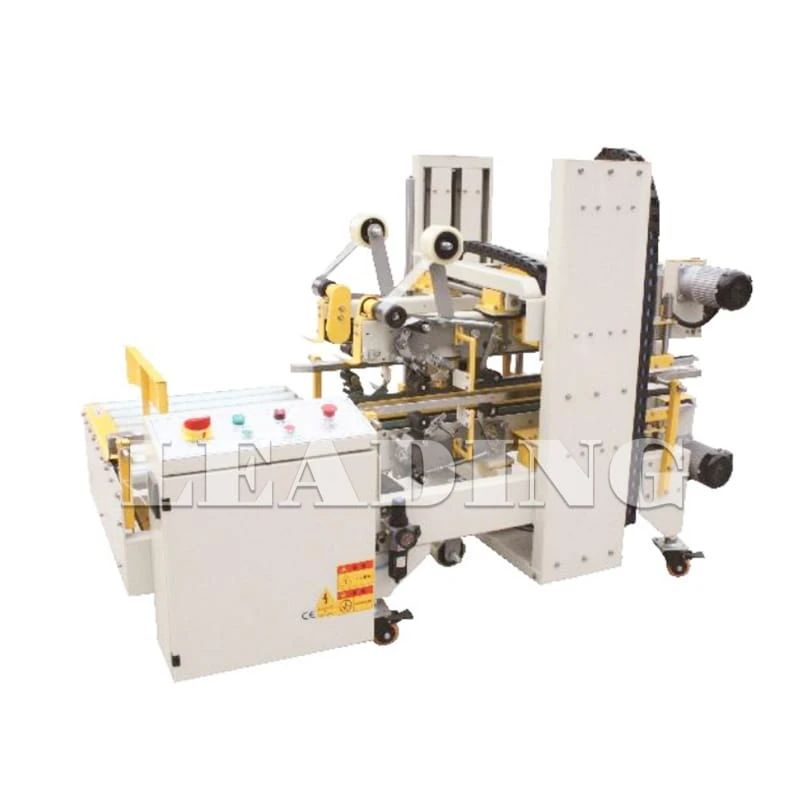

LDG-50 Semi Automatic Carton Edge Sealing Machine L Type
LDG-50 Semi Automatic Carton Edge Sealing Machine L Type
LDG-50 Semi Automatic Carton Edge Sealing Machine L Type
LDG-50 Semi Automatic Carton Edge Sealing Machine L Type
LDG-50

LDG-50 Semi Automatic Carton Edge Sealing Machine L Type

Application

Compact and durable design, easy to operate. Standard specification item.

Main Function

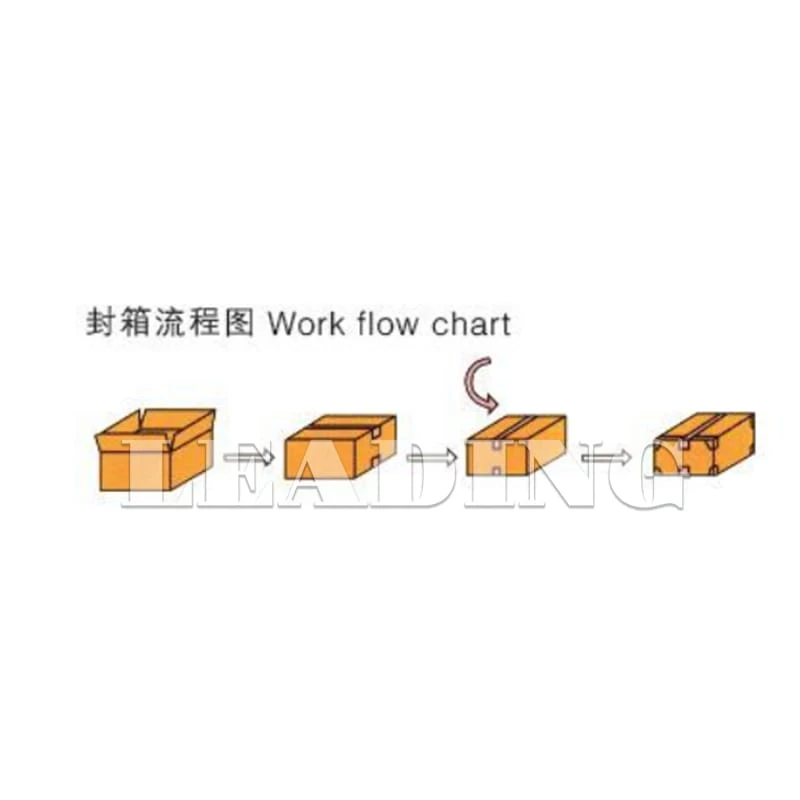

This series is an unmanned model, and “a” type automatic sealing box at the same time, to achieve the product “H” up and down at the same time sealing box

Suitable for the same specification carton at the same time.

The transmission design is driven by upper and lower belts.

Applicable carton specifications, different specifications of cartons manually adjusted


Description

Carton size(L)320-500*(W)200-500*(H)200-500mm
Table height500(min.)~750mm(max.)
Working speed400ctns/hr
Machine size(L)2000(W)1200(H)1500mm
Power220V/380V single phase, 50/60Hz or specified by client
Neumatic5-6kg/cm² 150L/min
Tape width60-75mm(alternative use)
Machine net weight450kgs
