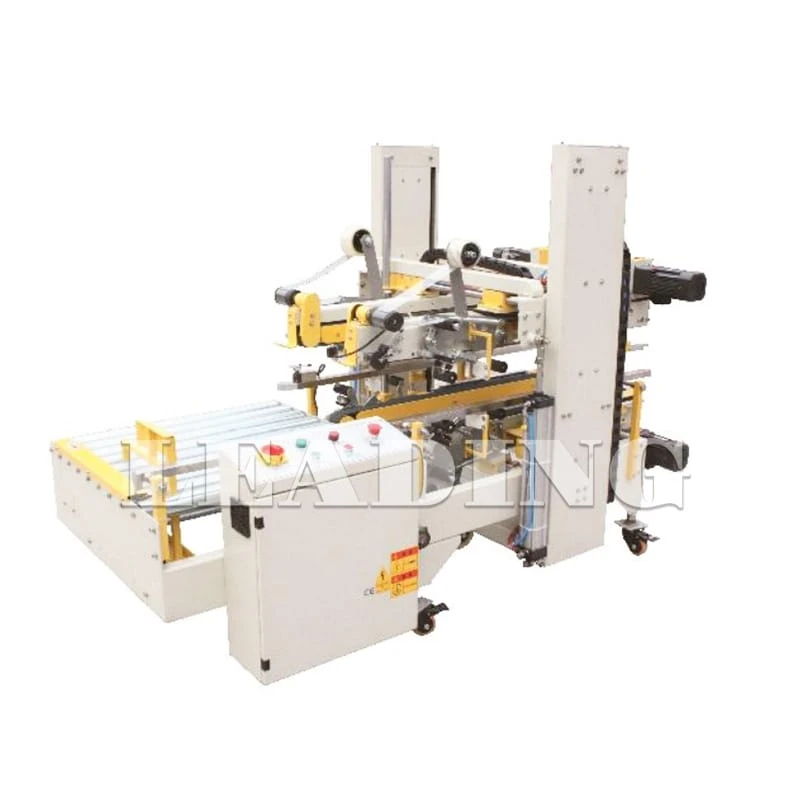

LDH-50 Fully Automatic Carton Edge Sealing Machin L Type

LDH-50

Application

Compact and durable design, easy to operate. Standard specification item.

GET A FREE QUOTE

Main Function

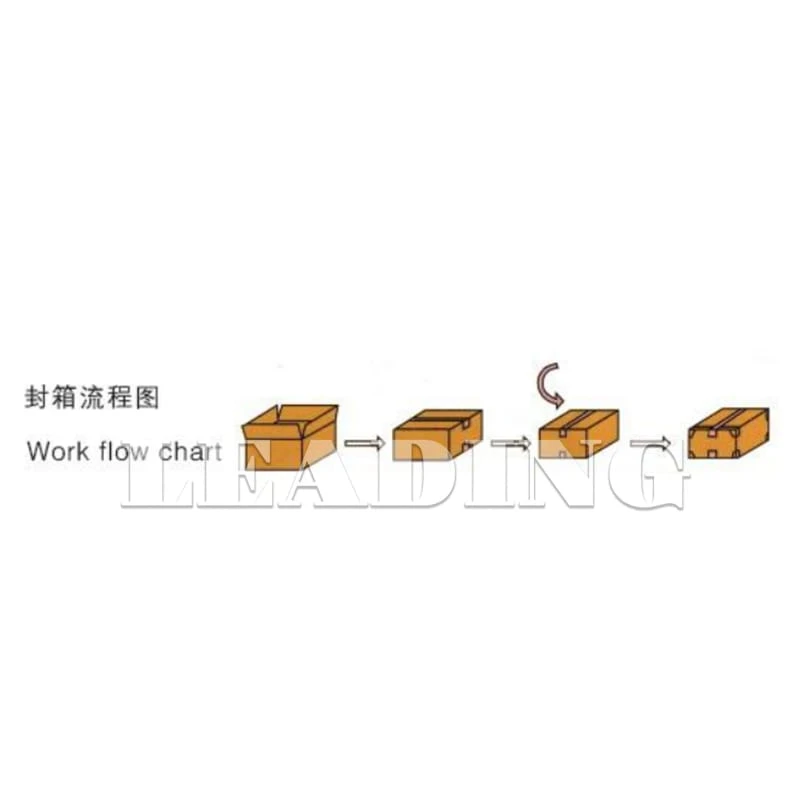

This series is an unmanned model, and “one” type automatic sealing box at the same time, to realize the product “H” up and down at the same time sealing box.

The transmission design is driven by upper and lower belts.

Applicable carton specifications, different specifications of cartons automatically adjusted.

Description

Carton size	(L)320-500(W)200-500(H)180-500mm
Table height	500(min.)~750mm(max.)
Working speed	300-360ctns/hr
Machine size	(L)2000(W)1200(H)1500mm
Power	220V/380V single phase, 50/60Hz or specified by client
Pneumatic	5-6kg/cm² 150L/min
Tape width	60-75mm(alternative use)
Machine net weight	450kgs
